Are you struggling with motor applications that need different speeds but don’t want complex systems? The frustration of choosing between cost and performance can be solved with dual-speed motors.
Dual-speed motors offer a cost-effective solution for applications requiring only two distinct speeds while reducing failure risks. These specialized motors feature either a single winding with pole-changing capability or two separate windings, providing reliable performance without the complexity of variable frequency drives.
Let’s explore how these versatile motors can transform your industrial applications while saving energy and maintenance costs.
Do you know who solved the industrial need for motors with multiple speeds? The answer lies in a brilliant Swedish innovation that changed motor technology forever.
The dual-speed motor, also known as the Dahlander motor or pole changing motors, was invented by Swedish engineer Robert Dahlander in the late 19th century. Working for ASEA, Dahlander and his colleague Karl Arvid Lindström received a patent in 1897 for their revolutionary electrical design that allowed motors to switch between different pole configurations.
Robert Dahlander’s discovery fundamentally changed how we approach motor speed control. His key insight was that by switching the poles in a motor, he could effectively reduce its speed without complex mechanical systems. This elegant solution addressed a critical industrial need during a time of rapid technological advancement.
The late 1800s marked a period of intense electrical innovation. Dahlander, working at ASEA (now part of ABB), focused on solving a practical problem: how to create motors that could operate at different speeds without sacrificing reliability or adding excessive complexity.
The breakthrough came when Dahlander and Lindström developed what became known as the “Dahlander connection.” This electrical configuration allowed a single winding to be reconnected in different ways, effectively changing the number of magnetic poles in the motor. The result was a motor that could operate at two distinct speeds with a 2:1 ratio between them.
The 1897 patent described a method for switching between poles in a motor that was remarkably forward-thinking for its time. The innovation wasn’t just in the concept but in the practical implementation that made it commercially viable. The connection method they developed allowed:
This invention came at a critical time in industrial development when factories were increasingly seeking ways to optimize their processes. The ability to change motor speeds without complex mechanical transmissions or multiple motors represented a significant advance in efficiency and cost-effectiveness.
The impact of Dahlander’s work extended far beyond his lifetime. The connection method he pioneered became a standard approach in industrial motor design, with the term “Dahlander motor” becoming synonymous with pole-changing motors. His work laid the foundation for modern multi-speed motor technology that continues to be used in numerous applications today.
The evolution from those early designs to modern dual-speed motors shows remarkable continuity in the core principles, even as materials, manufacturing techniques, and supplementary technologies have advanced. Today’s dual-speed motors still rely on the fundamental insights that Dahlander and Lindström developed over a century ago.
Have you ever wondered how machines can shift between speeds without complex gearboxes? The secret lies in the clever electrical design that makes two-speed motors both simple and effective.
Dual-speed motors operate on the principle of changing the number of magnetic pole pairs in the motor, which directly affects rotation speed. These motors are designed to run at two or three consistent speeds that can be switched between as needed, with the relative number of pole pairs determining the specific speeds available.
The fundamental principle behind dual-speed motors is elegantly simple yet remarkably effective. These motors leverage the relationship between magnetic poles and rotation speed to provide multiple operating speeds without requiring complex variable frequency drives or mechanical transmissions.
At the heart of dual-speed motor operation is a basic electrical principle: the synchronous speed of an induction motors is inversely proportional to the number of magnetic pole pairs. This relationship is expressed by the formula:
Synchronous Speed (rpm) = (120 × Frequency) ÷ Number of Poles
For standard 60 Hz power systems, this means:
Dual-speed motors take advantage of this relationship by allowing the effective number of poles to be changed, either through reconnection of a single winding (Dahlander connection) or by energizing different windings altogether.
One of the most important aspects of dual-speed motors is how they manage power at different speeds. There are three main configurations:
| Configuration | Torque Characteristic | Power Relationship | Typical Applications |
|---|---|---|---|
| Constant Torque | Torque remains the same at both speeds | Power proportional to speed | Conveyors, hoists, positive displacement pumps |
| Variable Torque | Torque varies with speed squared | Power varies with speed cubed | Fans, centrifugal pumps, blowers |
| Constant Power | Torque inversely proportional to speed | Power remains constant | Machine tools, winders |
This relationship between speed, torque, and power is crucial for matching the motor to its intended application. For example, in fan applications, reducing the speed to half typically reduces the power consumption to one-eighth, resulting in significant energy savings.
The ability to adjust speed directly to match load requirements makes dual-speed motors highly energy efficient in many applications. Unlike systems that use mechanical means to adjust output or run at full speed with throttling, dual-speed motors can operate at their optimal efficiency point for each speed setting.
When a dual-speed motor runs at lower speed, it consumes significantly less power. This translates to:
For applications with variable demands, such as ventilation systems that need different air flow rates depending on occupancy or time of day, this ability to match motor speed to actual requirements provides substantial energy savings over single-speed alternatives.
Are you tired of complex motor control systems that break down frequently? Many engineers face this dilemma, but dual-speed motors offer a compelling alternative with both benefits and limitations.
Dual-speed motors provide significant advantages over variable frequency drives, including lower power losses, simpler operation, and reduced maintenance requirements. However, they also have limitations such as mechanical stress during speed changes, harmonic distortion during pole shifting, and the fixed nature of available speeds.
The decision to use dual-speed motors in any application requires careful consideration of their strengths and weaknesses. Understanding these factors helps engineers make informed choices that balance performance, cost, and reliability for specific industrial needs.
Dual-speed motors, particularly Dahlander motors, offer several compelling benefits that make them attractive for many industrial applications. These advantages explain their continued popularity despite newer technologies entering the market.
One of the most significant benefits of dual-speed motors is their energy efficiency. Unlike single-speed motors that must run at full speed regardless of load requirements, dual-speed motors can operate at lower speeds when full power isn’t needed. This capability translates to:
For example, in ventilation systems, running a fan at half speed during periods of low occupancy can reduce power consumption by up to 87% compared to running at full speed.
Compared to variable frequency drives (VFDs), dual-speed motors offer much simpler motor control systems:
This simplicity makes dual-speed motors particularly valuable in environments where technical support may be limited or where system reliability is paramount.
The robust construction and fewer components of dual-speed motors contribute to exceptional reliability:
Despite their advantages, dual-speed motors are not without limitations that must be considered when evaluating them for specific applications.
The process of changing speeds in a dual-speed motor can create mechanical stress:
These stresses can be mitigated through proper system design but remain an inherent characteristic of the technology.
During pole shifting, dual-speed motors can produce harmonic distortion in the electrical system:
Unlike VFDs that offer infinitely variable speed control, dual-speed motors are limited to their designed speed settings:
This limitation makes dual-speed motors less suitable for applications requiring precise speed control or frequent adjustments to operating parameters.
Are you confused about which type of dual-speed motor would work best for your application? Many engineers struggle with this choice, but understanding the key differences can save you time and money.
Dual-speed motors come in two main types: separate winding motors with two independent windings in one stator, and single winding motors using the Dahlander pole-changing principle. The separate winding design offers flexible speed ratios, while the Dahlander connection provides a fixed 2:1 speed ratio with simpler construction.
The type of dual-speed motor you select can significantly impact performance, efficiency, and suitability for specific applications. Let’s explore the technical details of each type to help you make an informed decision for your industrial needs.

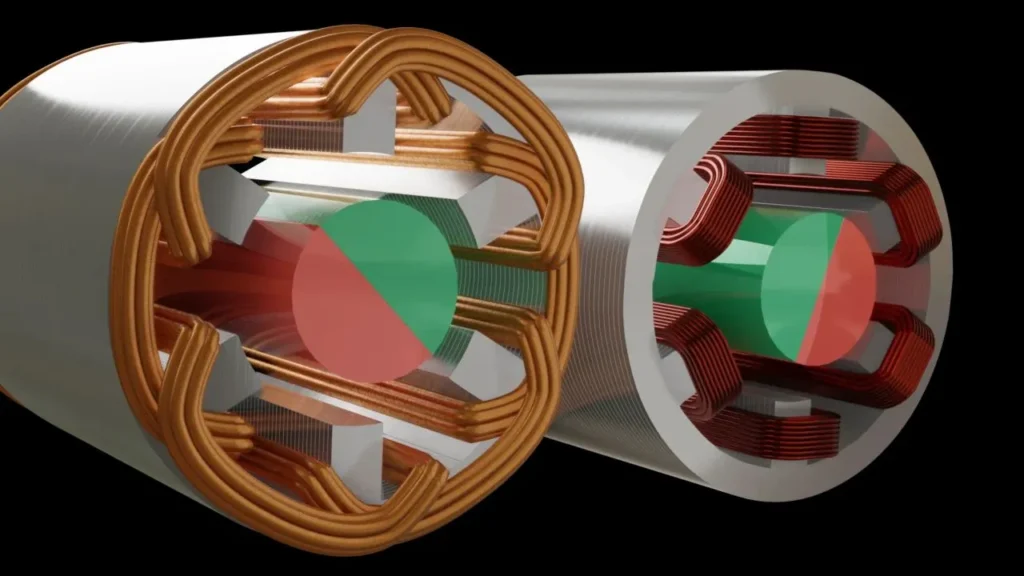

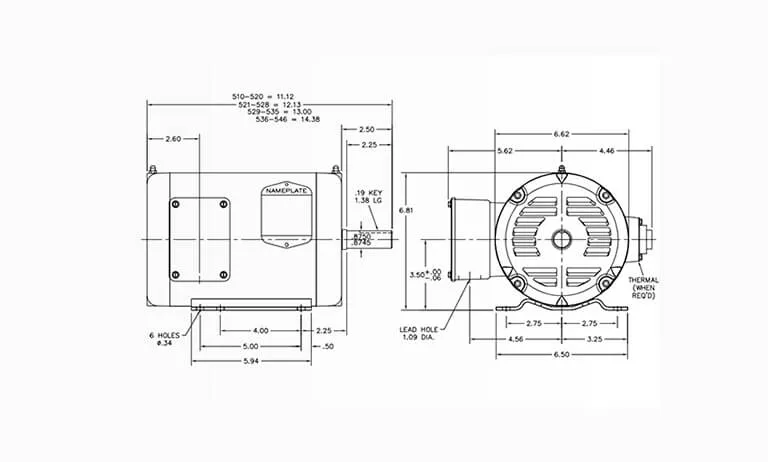

Separate winding motors represent one of the most versatile approaches to dual-speed motor design. As the name suggests, these motors feature two completely independent windings housed within a single stator frame.

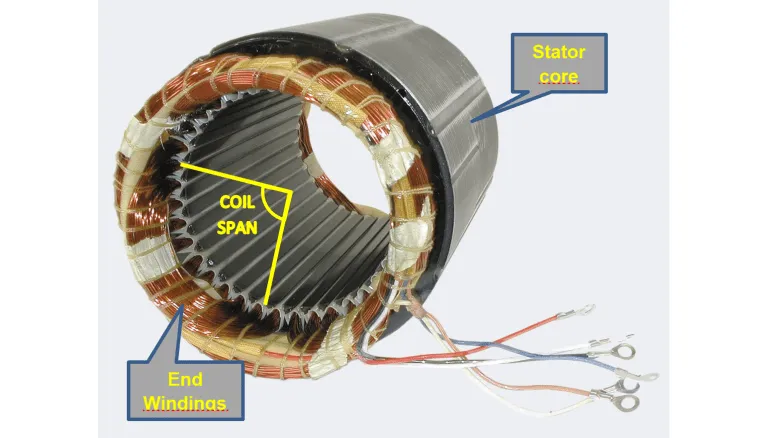

The separate winding motor is essentially two motors in one physical package:
This design approach offers significant flexibility in speed selection, as the two windings can be designed for any standard motor speeds. Unlike other dual-speed designs, separate winding motors are not limited to a 2:1 speed ratio.

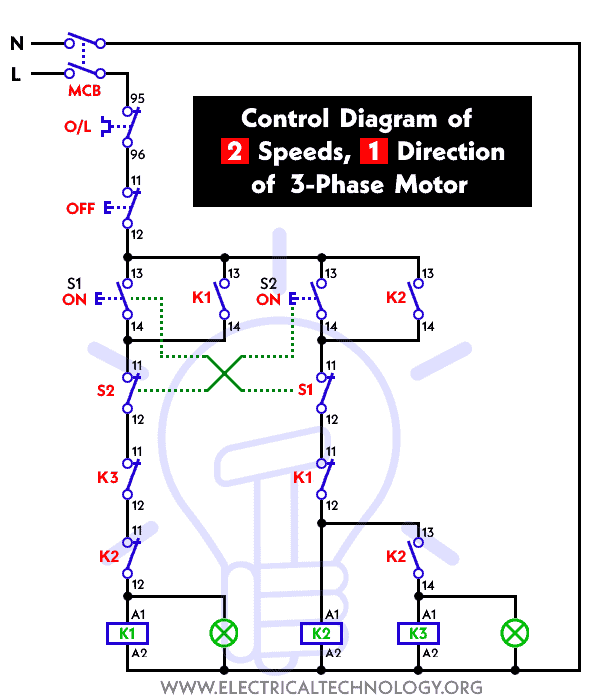

The operation of separate winding motors is straightforward:
This control scheme requires interlocking to prevent both windings from being energized simultaneously, which could damage the motor or connected equipment.
Separate winding motors excel in applications requiring:
For example, a machine tool requiring 1750 rpm for high-speed operations and 1140 rpm for precision work would benefit from a separate winding motor, as these speeds don’t follow the 2:1 ratio required by single-winding designs.
The Dahlander connection represents an elegant solution for dual-speed applications where a 2:1 speed ratio is acceptable. These motors use a clever winding arrangement that can be reconnected to change the effective number of poles.
The Dahlander connection works on the principle of pole changing:
This approach is sometimes called a “series-delta/parallel-wye” (Δ/YY) or “series-wye/parallel-wye” (Y/YY) connection, referring to how the winding is reconfigured during speed changes.
Dahlander motors are typically available in these pole/speed combinations (at 60 Hz):
| Pole Configuration | Speed (RPM) | Common Applications |
|---|---|---|
| 2/4 poles | 3600/1800 rpm | High-speed fans, small pumps |
| 4/8 poles | 1800/900 rpm | General purpose, HVAC equipment |
| 6/12 poles | 1200/600 rpm | Low-speed applications, heavy machinery |
Dahlander motors can be designed with different torque characteristics depending on the winding arrangement:
The choice between these characteristics depends on the load requirements of the specific application.
Are you wondering if a dual-speed motor is right for your specific industrial application? Many engineers face this question when balancing performance needs with budget constraints.
Dual-speed motors excel in applications requiring only two distinct operating speeds, including fans, blowers, pumps, hoists, conveyors, and machine tools. These motors are particularly valuable in industries such as air handling, water treatment, manufacturing, and material handling where energy efficiency and operational simplicity are priorities.
The versatility of dual-speed motors makes them suitable for a wide range of industrial applications. Their ability to provide two distinct operating speeds without complex control systems has made them a staple in many industries where reliability and efficiency are paramount concerns.
Dual-speed motors have found their place in numerous industries, each taking advantage of different aspects of these versatile machines.
In ventilation and air conditioning applications, dual-speed motors offer significant advantages:
A typical application might be a commercial building ventilation system that runs at high speed during business hours and switches to low speed during evenings and weekends, providing substantial energy savings.
Pumping applications in water treatment benefit from dual-speed motors in several ways:
For example, a municipal water system might use dual-speed pumps to maintain pressure during varying demand conditions without the complexity of VFD systems.
Cranes, hoists, and conveyor systems represent another major application area:
Beyond broad industry categories, dual-speed motors excel in specific equipment types.
Perhaps the most common application for dual-speed motors is in fan and blower systems:
| Fan Application | High Speed Use | Low Speed Use | Benefits |
|---|---|---|---|
| Cooling Towers | Maximum cooling capacity | Winter operation, energy saving | Up to 87% energy savings at low speed |
| Exhaust Fans | Maximum ventilation | Background ventilation | Noise reduction, extended equipment life |
| Process Cooling | Peak production cooling | Maintenance cooling | Matched cooling to production requirements |
The variable torque characteristics of fans make them particularly well-suited to dual-speed motor operation, as the power consumption drops dramatically at lower speeds.
In manufacturing equipment, dual-speed motors provide:
Centrifugal pumps benefit from dual-speed operation through:
The choice between separate winding and Dahlander connection motors depends on the specific application requirements:
By carefully matching the motor type to the application requirements, engineers can optimize both performance and energy efficiency while maintaining the simplicity and reliability that make dual-speed motors attractive.
Dual-speed motors offer a perfect balance of simplicity, reliability, and energy efficiency for applications requiring two distinct speeds. Their straightforward design and operation make them an excellent choice for many industrial uses without the complexity of variable speed drives.
A two-speed motor operates by either using two separate windings (one for each speed) or by reconfiguring a single winding to change the number of magnetic poles, effectively altering the rotation speed.
A typical two-speed motor using the Dahlander connection has either 4/8 poles (for 1800/900 rpm) or 2/4 poles (for 3600/1800 rpm), with the pole count doubling when switching to low speed.
Single winding motors use one winding that can be reconnected to change pole count, always with a 2:1 speed ratio. Dual winding motors have two separate windings, allowing any speed combination without ratio restrictions.
Yes, two-speed motors can be used with VFDs, but this combination is uncommon since VFDs already provide variable speed control, making the dual-speed feature redundant in most applications.
Energizing both windings simultaneously in a dual winding motor can cause severe damage to the motor through excessive current draw, overheating, and possible winding failure.
Two-speed motors are more energy efficient than single-speed motors in applications with varying load requirements, as they can operate at lower speeds during periods of reduced demand, significantly reducing power consumption.
Wiring a two-speed motor requires connecting the appropriate terminals according to the manufacturer’s diagram, typically using separate contactors for each speed with electrical interlocks to prevent simultaneous operation.
Two-speed motors typically cost 20-40% more than single-speed motors but significantly less than a complete VFD system, making them a cost-effective middle ground for applications requiring only two speeds.
